Reliable Quality and Proven Technique Chocolate Ball Mill Machine 500

Product Description

Chocolate Ball MillProduct Description

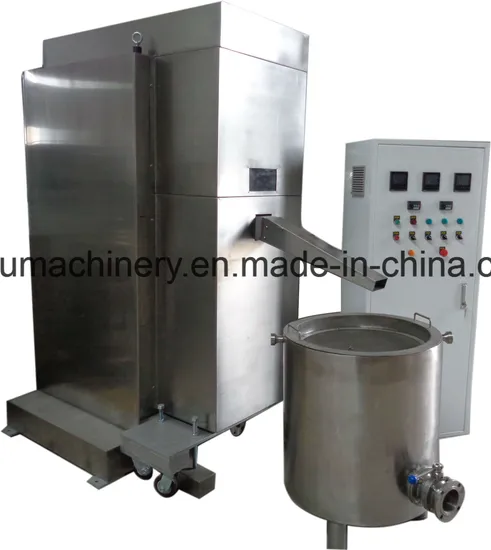

Gusu Ball Mill Machine is the ideal machine for ensuring efficient and uniform refinement of chocolate and similar masses with relatively low fat contents. Though this ball mill machine can be used as a stand-alone refining mill (Set after mixing machine), its features are best put to use when it is combined with our Chocolate Conche Machine, whether installed separately or as part of a comprehensive, compact unicom system.
Details
The chocolate paste is refined through the combined spinning of the two main shafts fitted with discs and the alloy beads located in the milling tank. The design and distribution of these components forces the mass (pumped upwards) to remain in the mill tank as long as needed, thereby allowing for the required reduction in fine particle size (20-25μm) while ensuring the homogenous distribution thereof.
Technical Parameters

Model	QMJ250	QMJ500
Main Motor(KW)	15KW	30KW
Spindle Speed(r/min)	250-530	280-340
Grinding Medium(kg)	200	400
Avg. Process Ability(kg)	150-250	250-500
Cooling Water(kg/h)	1500(15-20ºC)	2000(15-20ºC)
Input/output Pump(KW)	1.5	1.5
Overall Size(mm)	1300*1200*2050	1400*1250*2100

Application
Fine Refining of Chocolate Compounds Creams Daily Application Chemical Materials Other Low Fat Masses
Features
1. Screw shaped double jacket
Optimal transfer of cooling water temperature
2. Double Shaft
Higher efficiency
3. Automatic central greasing system
Smoothly running and reliable
4. Open product outlet
No over heating or over pressure
5. Stainless steel filter
Prevents overflowing and keeps balls in place
6. Extension to a higher capacity unicom system
7. Ideal dwelling times and refinement levels for each product
