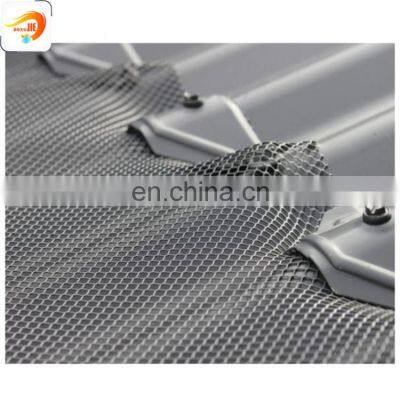

Aluminum expanded metal leaf gutter guard

Product Description

Product Description
Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.
Expanded Metal is produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, and it is not woven or welded - it can never unravel.
Expanded metal is commonly used to guard entry to an area or object or as a barrier, but still allow the free passing of liquids and gases. It can be purchased online and at Dongjie location. It can be cut to your exact specifications.
Expanded metal sheets come in two common types: raised and flattened. Raised sheets have wavy ridges throughout, whereas flattened sheet are truly flat.
Flattened Expanded metal is manufactured by passing the raised expanded sheet through a cold roll reducing mill. This turns the strands and bonds down to provide a flattened surface, reducing the thickness (gauge) and elongating the pattern. Expanded Grating is milled in a similar manner to expanded metal.
Raised International The unique Special Important
Expanded Metal Mesh, also referred to as standard expanded metal, is the format of steel, aluminum or stainless steel after it has been put through the expanding press. The shearing and stretching of the expanding process creates strands and bonds that are set at a uniform angle to the plane on the sheet. This adds strength and rigidity to the material, while providing a directional skid-resistant surface.

Diamond Metal Mesh/Stainless Steel Metal Sheet/Expanded Metal Mesh

The most common method of manufacture is to simultaneously slit and stretch the material with one motion.

L.W.M.	S.W.M.	Strand Width	Strand Gauge	Approx.Kg/m2
6.05	3.38	0.8	0.5	2.1
10.24	5.84	0.8	0.5	1.2
10.24	5.84	1.2	0.9	3.2
14.27	5.84	1.2	0.9	3.2
19.05	7.42	1.2	0.9	3.4
5.8	3.5	0.8	0.6	2.1
19	7.4	1.7	1	3.4
30.5	11.7	2.4	1.6	4.9
30.5	11.7	2.4	1.2	3.8
38	16.5	2.2	1.6	3.4
50.8	22.5	2.5	2.5	4.4
50.8	22.5	3	1.6	3.4
50.8	22.5	3.9	3	8.1
50.8	22.5	3.1	3	6.5
76.2	33.9	3.5	3	4.9
85.7	40.6	3.2	3	3.7
101.6	50.8	5	3	4.7
101.6	50.8	3.4	3	3.1
114.3	39.3	4.6	3	5.4
200	75	6.3	3	3.6

APPLIED FOR A QUOTATION
Feature of Expanded metal mesh/Diamond Metal Mesh/Stainless Steel Metal Sheet:
High and low temperature resistance,wear resistance,high and low pressure resistance,oil resistance,non-toxic,safety and health.Excellent quality,good service,competitive price.
Application Expanded metal mesh/Diamond Metal Mesh/Stainless Steel Metal Sheet:
Widely used for mining industry, coal industry works, petroleum, chemical industry, building, mechanical accessories, protection net, packing net, barbecue wire mesh, oven net, sintering furnace net, hardware net, artware net, vibrating screen net, net basket net, food machinery net, cooker net, wall net, nets for grains, roads, railways and infrastructures, grading screening of solid materials, filtration of liquid and slurry, cultivation, civil use, etc.
CONTACT US
Products Feedback

Our Certification

Packaging
1.The packaging Way:With bubble wrapping paper, in plastic bag,Or according client's requirement.
2.Sales Packaging:per piece with one poly bag ,or some piece put into one carton.
3.Shipping packaging:packaged in wooden boxes/Cartons.
1.Shipping time :on the way 10 days to 35 days,it's according to your destination port.
2.Shipping way :by sea , by air or by international express.
3.Shipping port :Xingang Port
