SE-3600V High Precision Energy-saving Eco-friendly Intelligence Efficiency All Electric Injection Molding Machine

Product Description

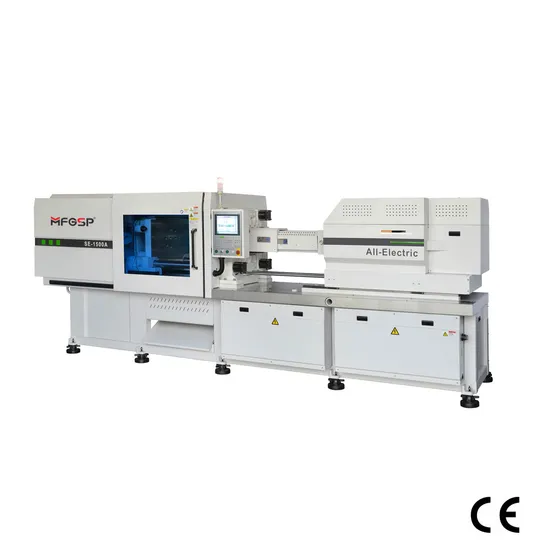

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-3600V
CLAMP TONNAGE		kN	3600
SPACE BETWEEN Tl E-BARS		mm	830x780
PLATEN DIMENSION		mm	1150x1120
OPEN STROKE		mm	700
MOULD THICKNESS		mm	250-800
EJECTOR STROKE		mm	180
EJECTOR FORCE		kN	58.8
EJECTOR NUMBER			13
MACHINEWEIGHT		T	19.8
SCREW DIAMETER		mm	50	55	60	55	60	65	60	65	70
INJECTION CAPACITY		cm3	511	618	735	665	792	929	891	1045	1212
INJECTION WEIGHT (PS]		g	465	562	669	605	720	846	810	951	1103
PLASTICIZING CAPACITY (PS)		kg/h	136	212	242	206	226	252	226	252	290
SCREW SPEED		rpm	320			320			250
HEATER BAND			4+1			4+1			4+1
HE/JER POWER		kW	17.5			20.2			23.6
NOZZLE PRESSING FORCE		kN	39.2			39.2			58.8
STANDARD			1020			1370			1790
INJECTION SPEED		mm / s	160			160			160
INJETION RATE (PS)		cm3 /s	314	380	452	380	452	530	452	531	616
INJECTION PRESSURE		Mpa	218	180	152	214	180	153	211	180	155
		kgf/cm2	2135	1836	1560	2183	1836	1561	2155	1836	1583
MAX.INJECTION HOLD PRESSURE		Mpa	175	144	121	171	144	122	169	144	124
		kgf/cm2	1707	1470	1186	1746	1469	1249	1724	1469	1266
TOTAL POWER		kW	59.6			70.2			73.6
OPTION			1020H			1370H			1790H
INJECTION SPEED		mm / s	250			250			250
INJETION RATE (PS)		cm3 /s	500	602	718	593	706	828	706	830	963
INJECTION PRESSURE		Mpa	218	180	152	214	180	153	211	180	155
		kgf/cm2	2135	1836	1560	2183	1836	1561	2155	1836	1583
MAX.INJECTION HOLD PRESSURE		Mpa	175	144	121	171	144	122	169	144	124
		kgf/cm2	1707	1470	1186	1746	1469	1249	1724	1469	1266
TOTAL POWER		kW	89.5			100.2			104
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
