Soybean Coconut Seed Cold Oil Press Pressers Sunflower Cocoa Cooking Oil Making Expeller Extraction Machine Price

Product Description

Cold Oil Press Machine Soybean Coconut Seed Oil Pressers Sunflower Ground Nut Making Cocoa Mill Expeller Extraction Machine Price
Product Description

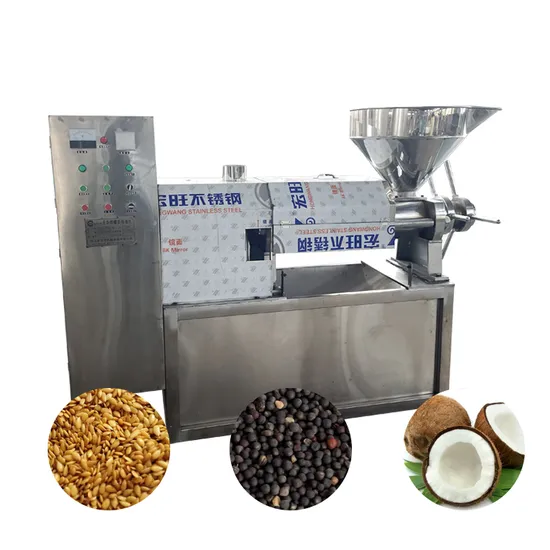

Automatic screw oil pressers is suitable for most oil bearing crops can realize thorough squeezing, continuous squeezed speed,high production efficiency, low energy consumption, high output. The oil press machine including screw oil press, electrical element for heating chamber, vacuum filter for cleaning oil. It can extract vegetable oil from different oil materials. You can get better edible oil easily from our oil making machine.
Oil press production line: peanut peeling machine→Roaster machine→seeds conveyor→oil press machine→oil filter→oil refining machine
Throughout the production line, various quality control measures are implemented to ensure the purity, freshness, and nutritional value of the extracted oil.
It's important to note that the specific process may vary depending on the type of oil press, the type of seeds being processed, and the desired end product. Different oil press models may have additional features and steps tailored to specific requirements.
Product Parameters

Model		6YL-60	6YL-70	6YL-80	6YL-100	6YL-125	6YL-150
Power	Power	2.2 kw	3kw	5.5 kw	7.5 kw	15kw	22kw
	Pump	0.55 kw	0.75 kw	1.1kw	1.1kw	1.5kw	2.5kw
	Heater	0.9 KW	1.8kw	2KW	2.2kw	2.8kw	4.5kw
Capacity(kg/h)		30-60	50-80	80-130	140-280	350-400	350-450
Weight		220kg	280kg	780kg	1100kg	1500kg	1500kg
Dimension(m)		1.2*0.78*1.1	1.4*0.86*1.26	1.7*1.2*1.5	1.8*1.3*1.68	2.1*1.4*1.7	2.5*1.75*2

Product Application
Automatic Soybean Oil Press Machine peanut extraction machine suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.Automatic spiral oil press machine is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.
Details Images
The main part of the screw press is the press chamber, which is made up of the screw shaft which is rotating with the squeezing cage and in the squeezing cage. The process of working is to reduce the diameter of the spiral shaft or the diameter of the root circle gradually, which makes the volume of the squeezing chamber shrink and produce the pressing effect.
The squeezed oil is squeezed out from the crevice of the cage, and the residue is pressed into the chips of the chip like cake, and it is continuously discharged from the end of the squeezing shaft. Generally speaking, the pressing oil extraction can be divided into three stages, namely, the feed (preloading) section, the main oil extraction section, and the cake formation (heavy oil Leach) section.

Company Profile
Our machines are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. Europe technology, perfect performance. Mikim -Machine is your reliable mechanical supplier. We have very attractive prices and looking for oversea agents ,welcome contact us for further information and you will be surprised of the significant savings that your company can achieve by working with us.
