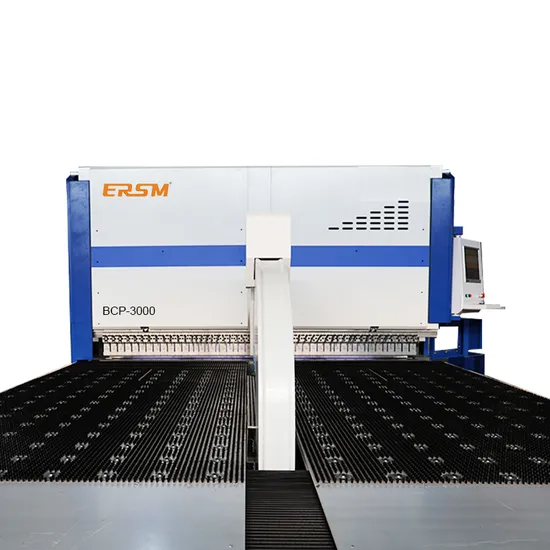

Flexible Automation Max Bending Height 170mm (Customized) Panel Bender Machine

Flexible Automation Max Bending Height 170mm (Customized) Panel Bender Machine

US$177,400.00
1 Piece
US$177,000.00
2 Pieces
US$176,000.00
3+ Pieces

Basic Info.

Model NO.
BCP-3000-1.5
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Panel Bender
Feeding Structure
Pressure Arm Type
Max. Bending Length
3000mm
Max. Thickness
1.5mm(Carbon Steel)
Max. Bending Height
170mm(Customized)
Min. Bending Height
4mm
Min. Inner Size of Four-Side Bending
110*140mm
Min. Inner Size of One-Side Bending
110mm
Min. Arc Radius
1.2mm
Min. Continuous Bending Speed
0.2s
Axis
15
Maximum Feeding Speed
120m/Min
Total Power
55kw
Average Power
6.5kw
Workbench Structure
Brush and Universal Ball
Transport Package
Wooden Box
Specification
6600*4100*2300mm
Trademark
ERSM
Origin
China
Production Capacity
50sets/Month

Product Description

Produce Features
· Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)
· Full servo control, low energy consumption. Servo-based torque feedback system.
· Muliti-axis linkage control, with a high degree of automation.
· Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)
· C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.
· Easy programming. Operator can customize the design and control of complex sheets according to their needs.
· Flatten hem instructions, press the edge up or down. Arc command, only need input the radius to realize the bending of the arc.
· Three-axis fully automatic positioning system.Multiple positioning.
Product Parameters
Model BCP-3000-2.0
Feeding Structure Pressure arm type
Max. Bending Length 3000mm
Max. Bending Size 3000*1250mm
Axis 18
Min. Inner Size of Four-side Bending 160*260mm(Customized)
Min. Inner size of One-side Bending 160mm(Customized)
Max. Thickness Stainless Steel(SS) 1.5mm
Carbon Steel (MS) 2.0mm
Aluminum(AL) 3.0mm
Min. Thickness 0.3mm
Min. Accuracy 0.01mm
Bending Angle -90°-90°, >1.5mm
0°-180°, ≤1.5mm
Max. Bending Speed 0.2s
Max. Feeding Speed 120m/min
Max. Bending Height 110mm
Min. Bending Height 8mm
Min. Arc Radius 2mm
Rated Voltage 380V
Motor Total Power 115KW
Average Power 10KW
Noise 55dB
Size 6900*4300*2800mm
Weight 35T
Workbench Structure Brush and universal ball

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
