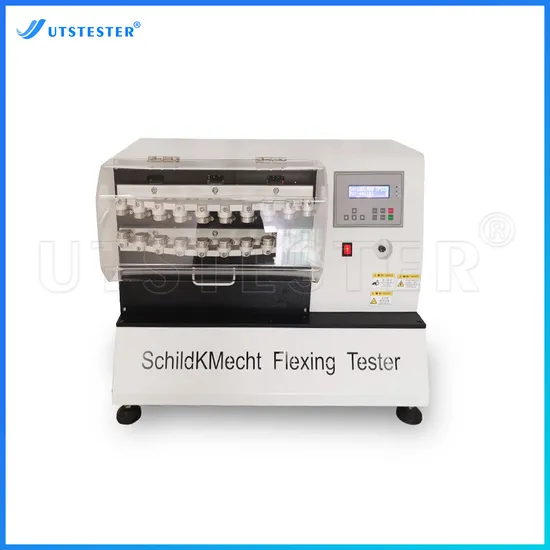

Textile Lab Equipment Schildknecht Method Flexing Machine

Product Description

Product Description
Test the flexural performance of the coated fabric leather material after reciprocating flexing.
Test Mode
A rectangular strip of coated fabric is wrapped around two opposite cylindrical positions, so that the sample is cylindrical. One of the cylinders reciprocates along its axis. The coated fabric tube is alternately compressed and relaxed, thereby causing folds on the specimen. This folding of the coated fabric tube continues until a predetermined number of cycles or significant failure of the sample occurs.
Standards

ISO 7854 Method B, GB/T12586-B Method, BS 3424:9, EN14325 Part 4.5

Features The surface treatment of the body: adopts DuPont powder from the United States, electrostatic spray paint process, curing at a high temperature of 200 ºC to ensure that the color will not fade for a long time. The position can be adjusted by jog, and the test speed can be adjusted; The mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials; Precision drive motor, stable operation and low noise; With counting and timing automatic stop function, the test can be automatically stopped by setting the test value; High-precision bearings are selected for smooth and stable rotation and long active life; One-button automatic test, simple and convenient operation; New vertical structure design, easy to install the sample; It can test 6/10 samples at the same time, with simultaneous twists and turns; The opening and closing protective cover can protect the hands of the operator, and it also has the function of protecting the stop when the cover is opened. Product Parameters

Model	M104BN-6	M104BN-10
Fixture	6 groups	10 groups
Rotation speed	8.3Hz±0.4Hz(498±24r/min)
Cylinder	outer diameter 25.4±0.1mm
Test track	arc R460mm
Test stroke	11.7±0.35mm
Clamp	width 10±1mm
Distance inside the clamp	36±1mm
Sample size	50×105mm
Power supply	1 Phase, AC, 220V, 50HZ(Specified by user)
Dimensions	400×550×350mm
Weight	About 65kg
