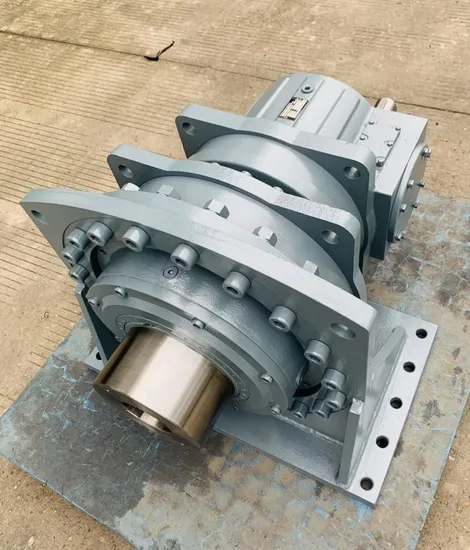

X Series Industrial Planetary Gearbox Gx3naz10 for Cement

Product Description

Product Description 1.Highly Standard Modular Designed:
The products are easily connected with and driven by different types of motors or other kinds of input
power. The same type geared motor can be adapted to optioned powers of motors.It is therefore easy
to realize different solutions for varied requirements.
2.Ratio:
Featured many closely divided ratios and wide range of them.Very big final rations can be obtained
through combined unites to reach extremely low output speeds.
3.Mounting Arrangement:No strict limitation to the mounting arrangement.
4.High Strength,Compact Dimension:
Housings are made of high strength cast iron.Gears and shaft gears are finished with gas carburising
process and precise grouding to sequeritially get high loading capacity of percertain volume.
5. Long Service Life:
Under the condition of accurately selecting type size and the normal maintenanceand use, main
components (expect those easily-disabled parts) can last as long as up to more than 25,000
hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6. Low Noise:
All key components are finished by precisely machining, accurate assembly, and finally tested,
and therefore, fairly low noise is reached.

Type	GX
Power	0.25-36kw
Output Speed	0.64-350rpm
Output Torque	top to 108100Nm
Ratio	25~4000
Weight	240-18900KGS
Standard voltage and frequency	380V&50HZ
Production time	25-30DAYS

Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q:How to choose a gearbox which meets your requirement?A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Q: What information shall we give before placing a purchase order?A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc. b) Housing color. c) Purchase quantity. d) Other special requirements.
