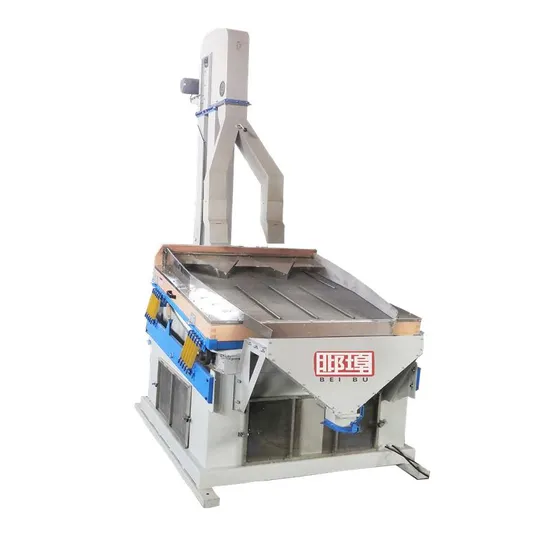

Fine Cleaning Machine Grain Separator Destoner

Product Description

Fine Cleaning Machine Grain Separator Destoner
Product Description
• It can clean most grain seeds and remove stones and soil; as well as some granular materials, remove heavier impurities; • The countertop is made of 304 food-grade stainless steel braided mesh to extend the service life; • The stone outlet adopts the back-blowing function to effectively reduce the material in the stone being brought out; • The sheet metal parts of the equipment are cut by laser to ensure accuracy. Working Principle
•Blowing type De-stoner will remove the stones and other heavy impurities;
•The raw material will deliver to the De-stoner by elevator,then the material will evenly scattered on the De-stoner table,with the fan motor under the table blow up the wind and the vibration of machine,the stones and other heavy impurities will climb up and the material will go down to the final product outlet.
•De-stoner capacity which is 3t/h based sesame and the machine got two types based on the different capacity.
Machine Structure

Machine Instructure
Product Parameters

Model	5QS-5	5QS-10
Table Size	1600mm*1600mm	2300mm*1600mm
Power(kw)	Fan motor:5.5KW Vibration motor:0.75KW Total in 6.25KW	Fan motor:7.5KWVibration motor:1.1KWTotal in 8.6KW
Capacity(t/h)	5t/h based on beans	10t/h based on wheat
Weight(kg)	950kg	1300kg
Overall Size L×W×H(mm)	2300mm*1660mm*1600mm	2300*2290mm*1600mm
Voltage	380V,50HZ	380V,50HZ

Cleaning Result
Machine Loading Picture
Installation Warehouse
