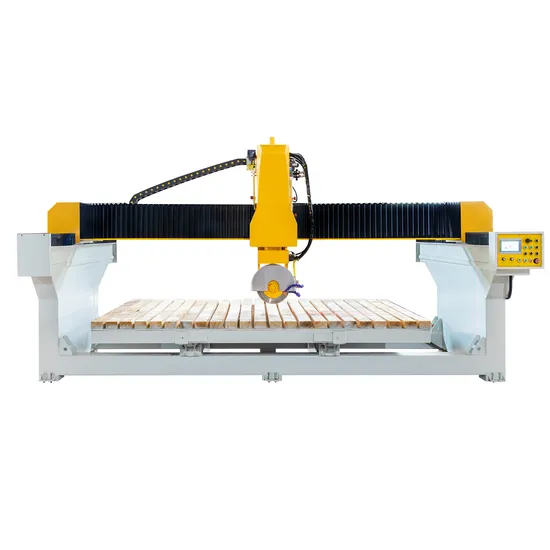

3 Axis Infrared Saw Cutter Tile Granite Quartz Stone Bridge Cutting Machine
| US$11,000.00-13,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HLYT-400
Type
CNC Cutting Machine
Usage
Ceramics, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
SONCAP, ISO, CE
Working Table Szie
3200*2000mm
Blade Dia
350-400mm
Head Rotate
0--90 Degree
Head Tilting
0--45 Degree
Transport Package
Standard
Specification
5100x2800x2600mm
Trademark
Henglong
Origin
Fujian, China
HS Code
8464109000
Production Capacity
20sets /Month
Packaging & Delivery
Package Size
5100.00cm * 2800.00cm * 2600.00cm
Package Gross Weight
5000.000kg
Product Description
Product Description
1.The machine adopts a bridge-type integrated structure, the machine bed is strong and stable, and has good stability.
2.The three-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life3.The machine head can be rotated in parallel of 0-90 degrees, and can be cut horizontally and vertically.4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.6.One-piece structure, no need to disassemble, easy to install and easy to move. 7.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.
Machine details
Technical Parameters:
| Max blade diameter | Φ400 MM |
| Working table size(L*W) | 3200*2000 MM |
| Max. working dimension(L*W*H) | 3200*2000*80MM |
| Working table tilting degree | 85° |
| Cutting head tilting degree | 45° |
| Cutting head rotating degree | 0°-90° |
| Main motor power | 11 KW |
| Water consumption | 4 m³/h |
| Weight | 3500 KG |
| Dimension(L*W*H) | 5100*2800*2600 MM |
