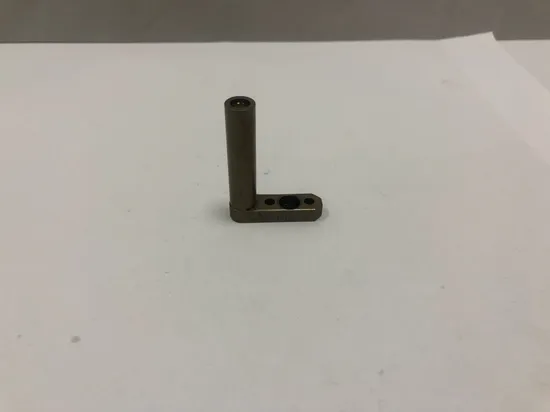

Stamping Die Used for Simitch/Tox Self Clinching Machine

Stamping Die Used for Simitch/Tox Self Clinching Machine

US$180.00-300.00 1 Piece (MOQ)

Basic Info.

Processing Method
Punching and Shearing Mould
Technics
Forming Die
Process Combination
Single-Process Mould
Manufacturing Technology
Automation Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
High Speed
Parts Detection Method
Measurement of Three Axis NC
Item Name
Punch and Die
Surface Treatment
Ti-Coated
Usage
Sheet Metal Connection
Max.Clinching Thickness
4mm+4mm
Transport Package
Carton
Specification
Variety sizes
Trademark
SIMITCH Brand
Origin
Jiangsu, China
HS Code
8463900090
Production Capacity
6000sets/Per Year

Product Description

Customized tooling or standard base frame they can be completed to a work station
Our factory manufacture and sell all kinds of mould component/matrix/punch and die for the press machine/self clinching machine
Our factory
Test Equipment
Laser Marking Machine Tension Force Test Machine Three-coordinate Measuring System Deflection Instrument
CE Certificate
Warehouse
Characteristics:
1. Joint point are firm and credibility
2. Rivetless, low cost.
3. Match the pre-pressure device,overcoming distort badly.
4. Riveting time, pressure, speed are all can be adjusted.
5. National patent technology, number shows can accuracy to 0.1 second
6. Press gently , the molding tool loss is small
7. Can transform into round or square
8. The riveting area has no stress
9. Can not break the plating or painting in surface
10. To the metals material request not high, the copper ,aluminums, steel, zinc are all unlimited
11. Riveting process has no vibration, low noise, low consumption
12. Unnecessary to processing in before or after riveting joint, allow to have the mezzanine and multi-layer conjunction
13. Advanced counter and time shows window
14. The electricity control system's operating are convenience and safety
15. Can riveting different shapes after replaced the different die
Why choose Simitch:
-1. 14 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 7-15 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in maximator.
