Ailusi Essential Oil Jacketed Mixer Tank Small Soap Making Conditioner Cream Mixing Machine Chemical Liquid Homogenizer Mixer Machine

Product Description

This machine is the equipment commonly used by daily chemical companies such as cosmetic shampoo, shower gel, hand sanitizer and so on. Through the adjustable speed stirring of the paddle in the pot and the homogenizer at the bottom, the materials are fully mixed and blended and stirred evenly. According to the requirements of the production process, the

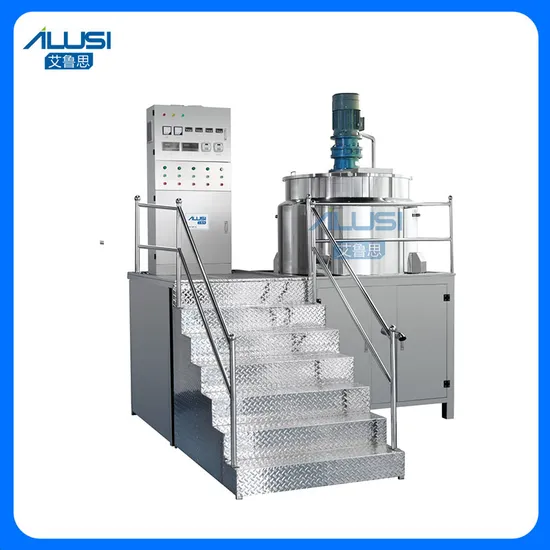

materials can be heated or cooled by heating in the jacket. Set a specific temperature, when the temperature reaches the required requirements, the heating device automatically stops heating.The mixing pot can also be equipped with a platform. The control cabinet is designed and installed on the platform. The heating, mixing speed control, and heating time are all completed on a unified operating platform, which is easy to operate and efficient.

Model	Capacity	Stirring		Homogeneous
		KW	Speed	KW	Speed
AHM-100L	60-100L	0.75	0-84rpm	2.2	0-2880rpm
AHM-200L	65-250L	1.5	0-62rpm	4	0-2880rpm
AHM-250L	75-250L	1.5	0-62rpm	4	0-2880rpm
AHM-300L	90-300L	1.5	0-62rpm	4	0-2880rpm
AHM-350L	100-350L	1.5	0-62rpm	4	0-2880rpm
AHM-500L	150-500L	2.2	0-62rpm	5.5	0-2880rpm
AHM-1000L	300-1000L	4	0-62rpm	11	0-2880rpm
AHM-2000L	900-2000L	5.5	0-62rpm	15	0-2880rpm
AHM-3000L	1000-3000L	7.5	0-62rpm	18.5	0-2880rpm
AHM-5000L	1500-5000L	11	0-62rpm	22	0-2880rpm

I. DOUBLE JACKET HEATING AND COOLING SYSTEM
The pot body adopts three layers of stainless steel imported plate welding composition, tanks and pipes for the mirror polishing, in line with GMP requirements; according to the process requirements, the tank can be heated and cooled materials, steam heating and electric heating.II. MIXING SYSTEM One-way frame mixing with scraping edge and bottom, customized two-way screw belt mixing available, so that make the material fully and quickly fused and uniform, the contact material is made of SS316L, the scraper ismade of PTFE, frequency conversion speed control.
III. HOMOGENIZING SYSTEM In the narrow gap between the stator and rotor, it is subjected to hundreds of thousands of times of hydraulic shear centrifugal extrusion, impact, tearing and other comprehensive effects per minute, instantly and uniformly dispersed and emulsified, and after high-frequency cycling, it obtains fine and stable high-quality products without air bubbles. IV. ELECTRIC BOX CONTROL SYSTEMOptional button control system/Siemens touch screen PLC system; in order to ensure the stability of the whole set of machine control, the electrical appliances are imported configuration, which can reach the international standard.V. Outlet
Adopt one and a half inch ball valve.
The top of the valve is flush with the body of the pot.
No residue of material. ·We will use high quality export standard woodenfor packing to ensure that your goods are safe during transportation and that the machines are not damaged/ deformed. Please rest assured that we will carefully check every detail to make sure your order arrives intact!
·In addition we can offer our customers the following modes of transportation: by sea, by land, by air.AILUSI.PROFILE
Guangzhou Ailusi Machinery Equipment Co., Ltd. was established in 2014, the factory was founded in 2007, catering primarily to industries such as cosmetics, food. With advanced technology, production and inspection equipment and the specialized processes. We have garnered praise and trust both domestically and internationally. Moving forward, we aim to uphold tradition, foster innovation, and collaborate closely with our customers for a prosperous future together. 1. Why choose us?
1.1-With industry-leading technical solutions and rich experience, we are able to provide tailor-made services;
1.2-Our team has professional knowledge and innovative ability, committed to providing customers with the best solutions, can help your company quickly improve production efficiency, optimize costs, so as to stand out in the fierce competition in the market;
1.3-Our products undergo strict quality control to ensure superior quality and have good after-sales service;
1.4-We focus on customer needs, communication and collaboration to ensure the successful implementation of the project.
1.5-If you are in the start-up stage and seeking capacity expansion, we can customize a whole efficient production line service program for you, and we are committed to the design and planning to the installation and commissioning, and then subsequent after-sales service support, will be the industry's top professional standards, to ensure that your production line can run smoothly!
2. What about after-sales service?
2.1- Before leaving the factory, the factory will strictly test whether the equipment operates normally or not, and before shipping, we will operate and debug the equipment again to ensure that the appearance of each machine has no external damage and functions normally, and provide operation videos and pictures to customers to confirm that there is no error, and then packaged for shipment.
2.2-For equipment that requires on-site installation and commissioning training, we can provide professional technicians to the customer's factory for installation and training teaching services, in the process of installation and commissioning, the technicians will provide on-site guidance to help customers familiarize with the operation and maintenance of the machine.
2.3-When customers encounter problems in the process of use, we provide a variety of convenient solutions [phone, e-mail, WeChat, video instruction and other ways]
3. How do you control the quality and delivery?
3.1-If you are worried about the quality, we can sign a quality assurance certificate, which can guarantee the interests of customers and ensure that our commitment is real and effective.
3.2-We will pack each machine in export wooden case before shipment, and provide pictures before and after packing to our customers to make sure the quality is worry-free before arranging shipment.
4. What about warranty and spare parts?
4.1-We offer a standard warranty of one year from the date of purchase. Within this one year, if the product has quality problems that are not caused by human damage, we will be responsible for repairing or replacing the corresponding parts free of charge.
4.2-We ensure that we provide our customers with sufficient spare parts support. During the warranty period, if the equipment needs to be replaced due to maintenance, we will provide the necessary spare parts to ensure that the product can be quickly returned to normal use. At the same time, we also provide a spare parts purchasing service for customers who exceed the warranty period, and we undertake to provide them at cost.
4.3 - We also offer a lifetime maintenance service for our machines! Even if the machine is out of warranty, you can contact us at any time to solve any problem.
5. Are your machines difficult to operate? How do you teach us how to use the machine?
Our machines are simple to operate and easy to learn; each machine comes with a detailed instruction manual and operating video, which contains a description of the machine's functions, operating procedures, safety precautions, machine maintenance, and troubleshooting guides.
6. Can you customize the machine?
As a machine manufacturer for 20 years with a professional engineering team and advanced production facilities, we have the skilled OEM know-how to design and build machines to your specific requirements that meet your standards.
7. What about delivery time?
In stock machines: 2-7 working days; Usually 7-40 working days (depending on the product).
