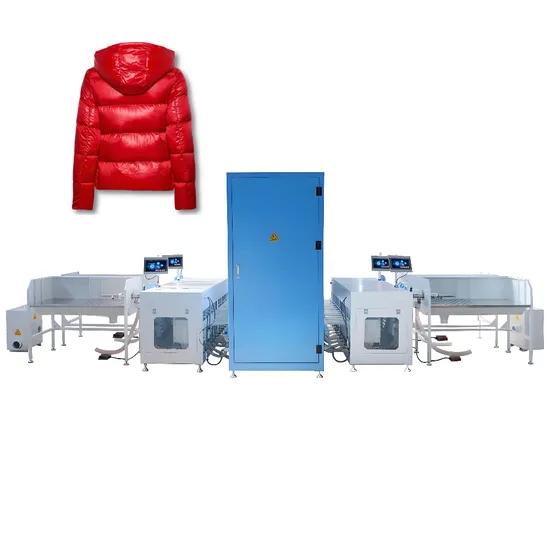

FUDA 4 Nozzles 24 Scales Automatic Duck Down Jacket Stuffing Machine

Product Description

Product Overview 24F6D Automatic Down and Staple Fiber Filling Machine with 4 Ports 24 Scales. Fuda's new technology automatic down filling machine is suitable for small weights and large production capacity, high accuracy for the dynamic weighing system, high display for 10" touch screen, and multi-language, easy-to-operate. Products Description Product Advantages

High precision	The dynamic error accuracy is ±2%.
Control system - Compiled PLC	Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI	Easy to learn and operate, Multi-language, sensitive touch.
Feeding Material - accuracy	the error accuracy is controllable.
Returning Material - Quickly	The one-key operation is to empty the remaining material in all scales.
Dedusting recycling - Clean	Dustless working environment, reducing raw material wastage.
Gear motor - low noise	Low noise, high torque, long life, and easy maintenance.
Appearance - The Beauty of Simplicity	Compact design, clean white, technology blue.

Product Parameters

Model NO.	24F6D
Product Name	Automatic Goose Down Filling Machine
Filling Ports	Four-Heads
Filling Range	0.2-35g
Display Accuracy	0.01g
Nozzle Size	19mm/25mm with air return, 32mm for duvet
Storage Volume	20-25Kg
Filling Materials	Duck Down, Goose Down, Polyester Fiber, Ball Fiber
Application	Down Jacket, Down Pants, Down Duvets
Daily Capacity	2000 plus down jackets
Power Supply	1Ph AC220v 3.0Kw
Air Supply	0.6-0.8Mpa, 7.5Kw
Display Device	10" Touch Panel
Control System	PLC with 24 Weighing Units
Footprint	2.5*3.5*2.0m(L*W*H)
Net Weight	1450Kg
Gross Weight	1870Kg
Transport Package	Wooden Case
Specification	4 Ports 24 Scales
Trademark	FUDA
Origin	Shanghai

Applications Detailed Photos Fuda Profile Our FUDA factory has incorporated advanced technology into this machine, resulting in low noise levels during operation.
This ensures a comfortable working environment for your employees.
Equipped with 4 ports and 24 scales, this goose down filling machine offers enhanced efficiency and accuracy.
It is specifically designed to fill goose down, guaranteeing consistent and uniform filling for each down jacket.
Invest in FUDA Fully Automatic Goose Down Filling Machine and streamline your production process.
Experience the benefits of increased productivity, improved quality, and reduced labor costs.
Upgrade your intenligent filling capancity with this reliable and high-performance machine.
The touch screen interface allows for simple operation, making it user-friendly and reducing the learning pressure for operators.
With its multi-application capabilities, it can handle various filling application, making it a versatile choice for different down jacket style
